Firewall Renders

(N.C.C.) Compliant Façade Render Systems tested in accordance with Australian Standards Fire Testing AS 1530.1:1994 (R2016) or AS-5113 & BS-8414 - large scale façade fire testing.

Firewall Aggra-Prime

Firewall Non Combustible Render Primer
Firewall Non Combustible Render Primer
Australian Made and Owned Paint and Renders

Firewall 1530 Render Non-Combustible

1530 Non Combustible Render
1530 Non Combustible Render
Australian Made and Owned Render

Firewall Render

Firewall Non Combustible Render Systems for PVC
Firewall Non Combustible Render Systems for PVC
Australian Made Paint texture Coatings and Render

Firewall Rota-Render Non-Combustible

Firewall Rota-Render Non Combustible Render
Firewall Rota-Render Non Combustible Render
Australian Made and Owned Render

Firewall Skim

Firewall Non Combustible Render Systems
Firewall Non Combustible Render Systems
Australian Made Paint, Texture Coating and Render

Firewall Façade Render and Texture Systems

Fibre Cement Sheet & Panel

Non Combustible Render for Fibre Cement Sheet and Panel Firewall
Non Combustible Render for Fibre Cement Sheet and Panel Firewall
Learn More

Autoclaved Aerated Concrete

Autoclaved Aerated Concrete
Autoclaved Aerated Concrete
Learn More

PVC Permanent Formwork

Non Combustible Render System for PVC Permanent Formwork
Non Combustible Render System for PVC Permanent Formwork
Learn More

Changes to the Australian National Construction Code adopted on the 1st May 2019 have tightened fire compliance requirements for external claddings products and finishes.

Firewall façade finishing systems are NCC compliant render and coating solutions as summarized in the tables below.

Australian Building Codes Board Directive

Type A & B construction external walls & facades assessed under DtS provisions, RENDER must be non-combustible.

Buildings Of Type A & B Construction Deemed To Satisfy (DtS) Provisions For External Walls

  • NCC cl C1.9(d) and C1.9(e) does not exempt render and requires it to qualify as non-combustible under cl C1.14(a).
  • NCC cl C1.10 and sub-paragraphs not relevant for external wall coatings.
  • NCC cl C1.14(l) only exempts paint and similar finishes including textured paint and primers.

Performance Solution for external walls

  • Must be prepared by a suitably qualified fire engineer and the coating system must have large scale AS5113 & BS8414 fire tests conducted by accredited NATA test facilities.

Firewall Render, Texture & Elastomeric Coatings.

Firewall façade finishing systems are NCC compliant render solutions for Masonry /AAC Panel /FC Sheet & PVC Panel

Independently Tested as Deemed To Satisfy (DtS) and Performance Based Solutions for External Walls.

  • Armatex Firewall 1530 Render Non-Combustible (Masonry/AAC/CFC) panels Passes AS1530.1 and tested at NATA approved test facilities.
  • Armatex Firewall Render coating system for (PVC panels) is tested to AS5113 and BS8414 at NATA approved test facilities. DtS compliant for Type C construction and performance based solution for Type A & B construction by a suitably qualified fire engineer. Results independently assessed by Red Fire Engineers.
  • Armatex Texture Coatings, primers and Energy Star Paint, exempt under clause C1.14(l).

Independent Testing

AS-5113 & BS-8414 - large scale façade fire testing.

The Firewall coating system shown in the large scale façade fire test below satisfies the non-combustibility provisions relevant to Type C construction in accordance with the Building Code of Australia Deemed-to-Satisfy provisions. It also can be used in Type A and B construction upon a Performance Solution being completed by a suitably qualified fire safety engineer. For assistance regarding this non-combustibility assessment, we can provide an overview conducted by Red Fire Engineers of our testing in accordance with AS5113:2016, BS8414-2:2015 and AS/NZS1530.3.

Project Gallery

Residentials apartments.

CBD, Sydney NSW

Designer apartments.

CBD, Sydney NSW

Residential home.

Palm Beach, NSW

Designer apartments.

CBD, Sydney NSW

Hotel accommodation.

CBD, Sydney NSW

Townhouse complex.

Ringwood, VIC

Residential home.

Toorak, VIC

Designer apartments.

Rosebay, NSW

Residentials apartments.

Homebush NSW

Residential Complex.

Belview Hills, NSW

Residential home.

Donvale, VIC

Residential home.

Palm Beach, NSW

Residentials apartments.

Revesby Heights, NSW

Residentials apartments.

Parramatta, NSW

Residential Complex.

Kurnell, NSW

Residentials apartments.

Messier designer apartments, NSW

Designer Home

Belview Hills, NSW

College.

Career business college, NSW

Living Apartments.

Beaconsfield, NSW

Designer apartments.

Brighton Le sands, NSW

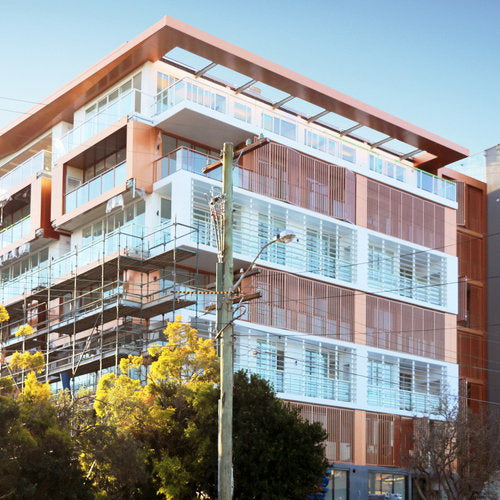

Designer Apartments

La pearl residential, NSW

Designer Apartments.

Dee Why, NSW

Commercial Tenancy.

North Sydney, NSW

Designer apartments.

DNA designed apartments, NSW

Why Choose Armatex Firewall

We are proud of what we make and that our products can carry the Australian Made and Owned Logo.

Independent third party accreditation for heat reflective coatings provides our clients' assurance that the Energy Star products they use will perform as stated.

The Good Environmental Choice Label is the only environmental labelling program in Australia which indicates the environmental performance of a product from a whole of product life perspective for consumer goods.
